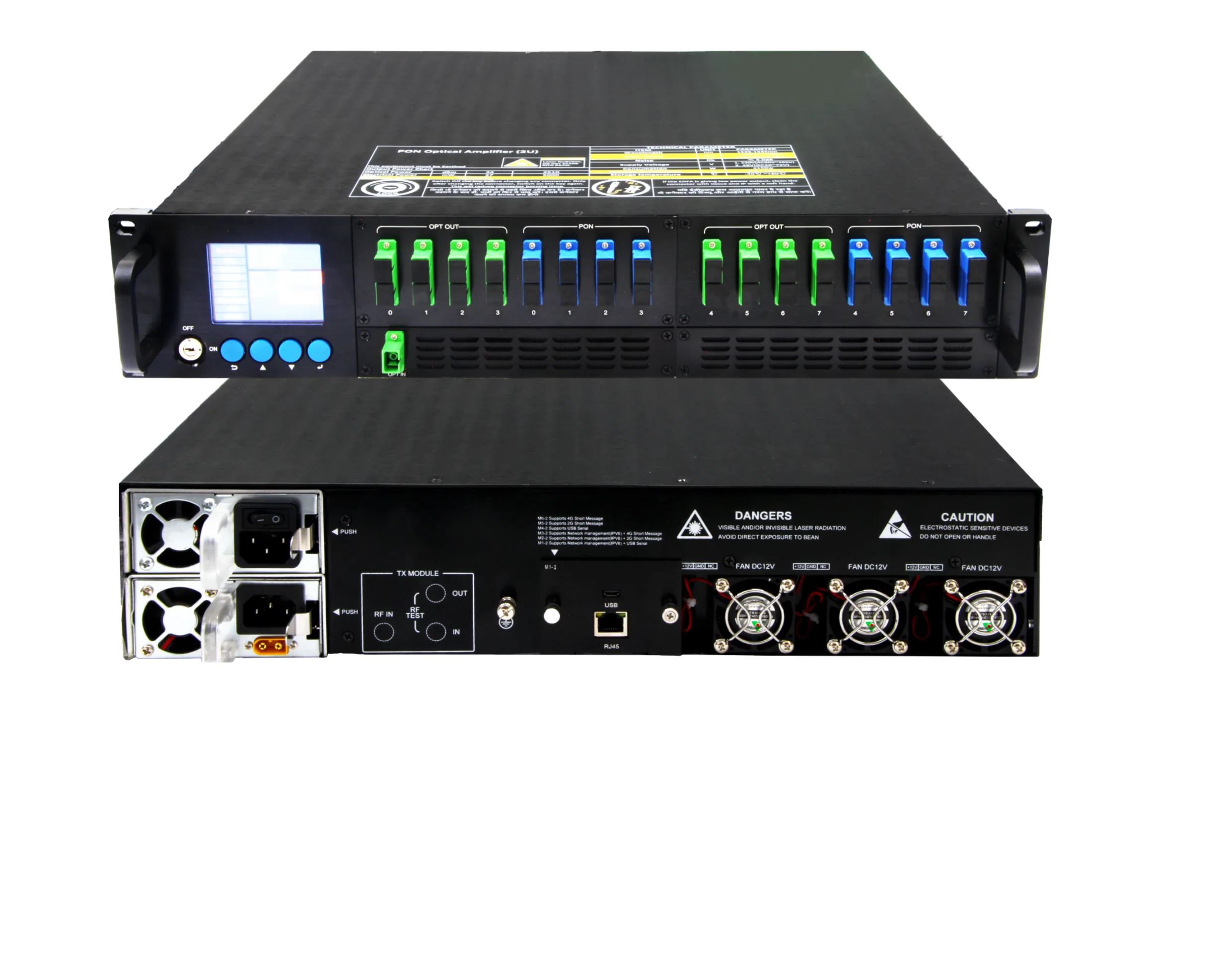

PON EDFA PE1619M+OSW

Our WDM EDFA/PON EDFA is a high-performance optical amplifier that combines CATV and OLT signals, delivering powerful CATV output for integrated network applications. With low noise, wide dynamic range, and intelligent network management (SNMP, Web, RS-232), it ensures stable, long-distance transmission in FTTx and HFC networks. Its compact rack-mount design, redundant power options, and plug-and-play installation make it ideal for modern broadband access systems.

Need help choosing? Our team can guide you to the right configuration.

Overview

Key features and overview of PON EDFA PE1619M+OSW

8,16,32 uplink optical ports on OLT, 4 & 8 ports of PON and 1550nm CATV EDFA Combine out
Each output port is optical amplifier that built-in self-controlled CWDM
1550nm CATV output port equipped power adjustable 13/14/16dBm
Dual controlling interface port of the pump laser
SNMP Port & Plug-in SNMP system enable remote monitoring
Status indicator lights
High quality, backplane and flat laser
LCD displays the working parameters, functions and trouble alarm
Switch power supply works in the range of AC90V – 265V AC or -48V DC
